Keyboard Component Instructions
2025-05-05

* Keyboard Cable / Backlight Cable / TrackPointer

Keyboard Cable:

Connect the keyboard cable to the motherboard so that the keys can work.

Backlight Cable:

Connect the backlight cable to the motherboard so that the Backlight board can work.

TrackPointer Cable:

Connect the TrackPointer cable to the motherboard so that the TrackPointer can work.

Three-button TrackPoint pointing device

It's the 3 buttons at the bottom.

* Laptop Keyboard Frame

The frame of a laptop keyboard refers to the plastic framework between the keys.

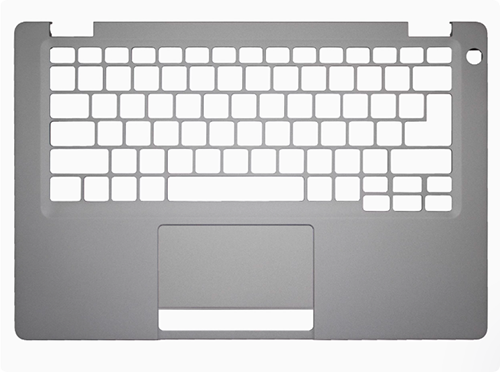

* Laptop Keyboard Palmrest Cover:

Some keyboards frame are connected to the palm rests.

* Keyboard Keys
